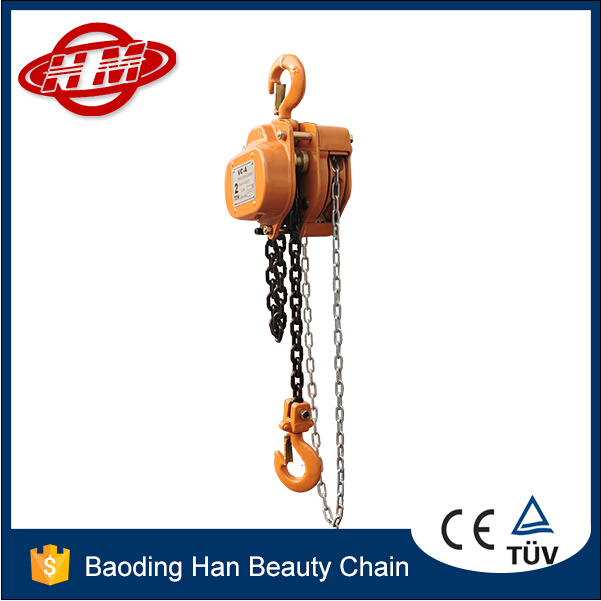

VCA Type Chain Block
VC-A Type Chain Block Features
1.gear case and hand wheel cover resistant to external shocks.
2.double enclosure to keep out rain water and dust.
3.safe and reliable braking functions(mechanical brake).
4.double pawl spring mechanism to further increase sureness.
5.hooks for easy work.
6.gear with natures of high preciseness and tenacity.
7.load chain guide mechanism,finely fabricated from wrought iron.
8.ultra strong load chain
|
Main performances and technical specifications |
||||||||||
|
Model |
|
|
|
|
|
Dimension(mm) |
|
|
||
|
A |
B |
C |
||||||||
|
VC-A0.5T |
0.5 |
2.5 |
0.75 |
1 |
5 |
129 |
136 |
270 |
8.4 |
22*16*15 |
|
VC-A1T |
1 |
2.5 |
1.5 |
1 |
6.3 |
151 |
145 |
317 |
12 |
25*19*16 |
|
VC-A1.5T |
1.5 |
2.5 |
2.25 |
1 |
7.1 |
150.5 |
164.5 |
399 |
16.2 |
33*24*16 |
|
VC-A2T |
2 |
3 |
3 |
1 |
8 |
161.5 |
187 |
414 |
20 |
33*24*19 |
|
VC-A3T |
3 |
3 |
4.5 |
2 |
7.1 |
150.5 |
164.5 |
465 |
24 |
34.5*24*16 |
|
VC-A5T |
5 |
3 |
7.5 |
2 |
9 |
161.5 |
211 |
636 |
41 |
40*30*19 |
|
VC-A10T |
10 |
3 |
15 |
4 |
9 |
207 |
398 |
798 |
79 |
48*42*18.5 |
|
VC-A20T |
20 |
3 |
30 |
8 |
9 |
215 |
650 |
890 |
193 |
78*68*20 |
|
VC-A30T |
30 |
3 |
45 |
12 |
9 |
350 |
680 |
1380 |
220 |
85*67*30 |
|
VC-A50T |
50 |
3 |
75 |
22 |
9 |
410 |
965 |
1950 |
1092 |
110*100*130 |
